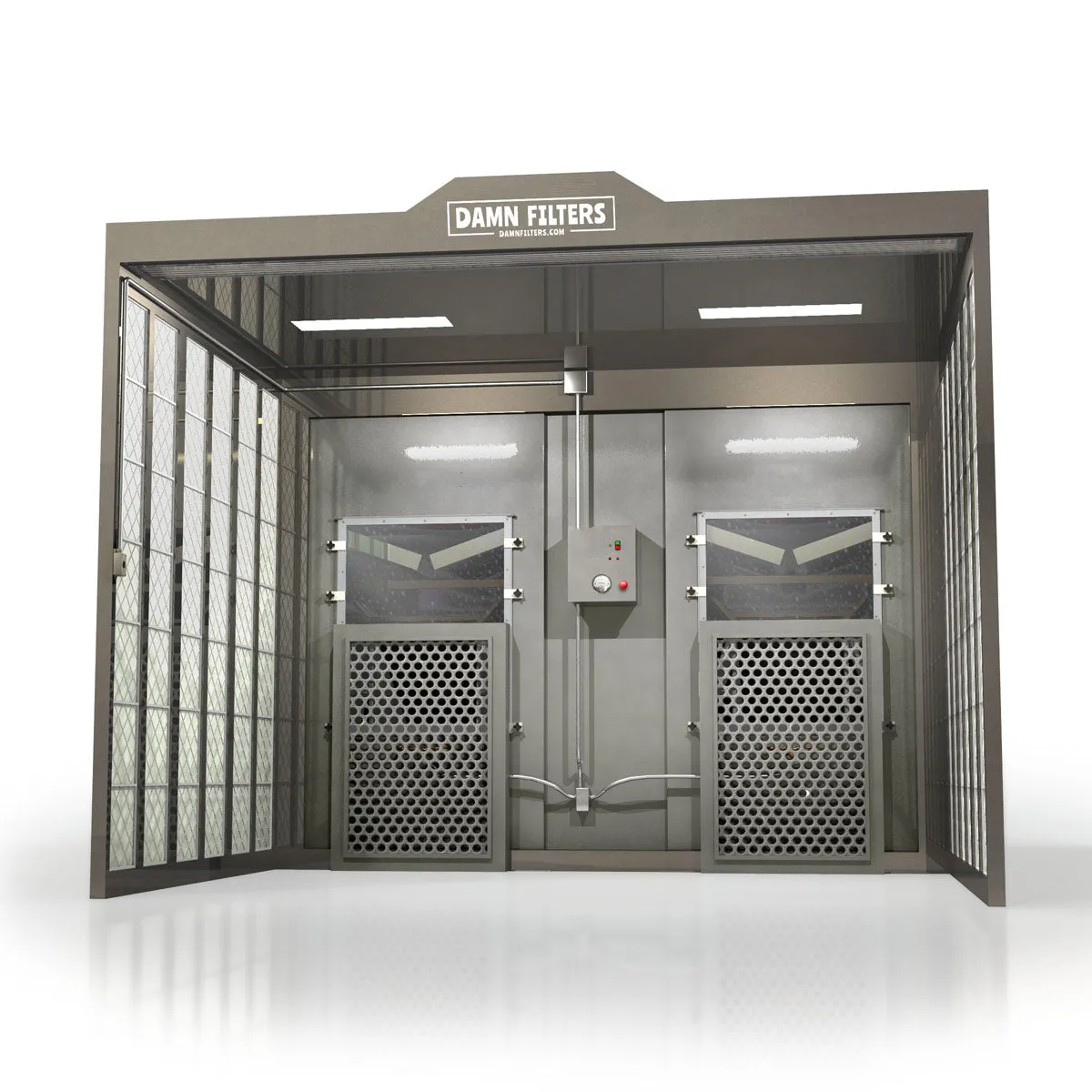

Wet Booth Details

Measurements: 8' x 8' x 7.5' (h)
Blower: Top mounted Blower SXBD– 15HP/460V/3/60 22.25" BI wheel – 1750 Rpm 6000 cfm @ 6" H20
Panel: Magnetic motor starter, Thermal overload, Step down transformer, On/Off buttons, Full control panel including Nema 12 enclosure

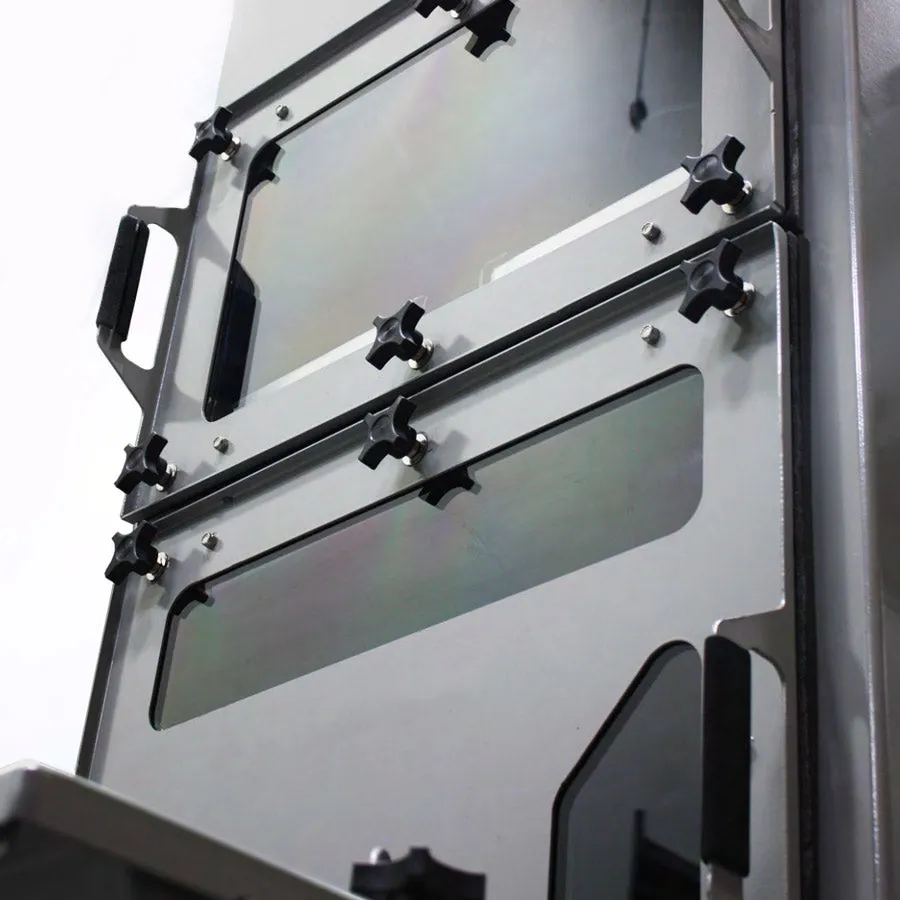

Materials: One-piece gasket on doors and front cap to ensure pressure capacity within collector. Welded cabinet with epoxy interior, constructed with mild steel (12 gauges construction), rear entry with baffles and KIMRE pad impingers, Water basin
Lighting: 2 Light kits, Booths are equipped with fluorescent ballasts
Additional Details: High and Low water level alarms, Full water level controls, Outlet damper
Shipping charges: Calculated when purchased
Available in Stainless Steel
Additional options available upon request.

***LEAD TIME 8-12 WEEKS***
