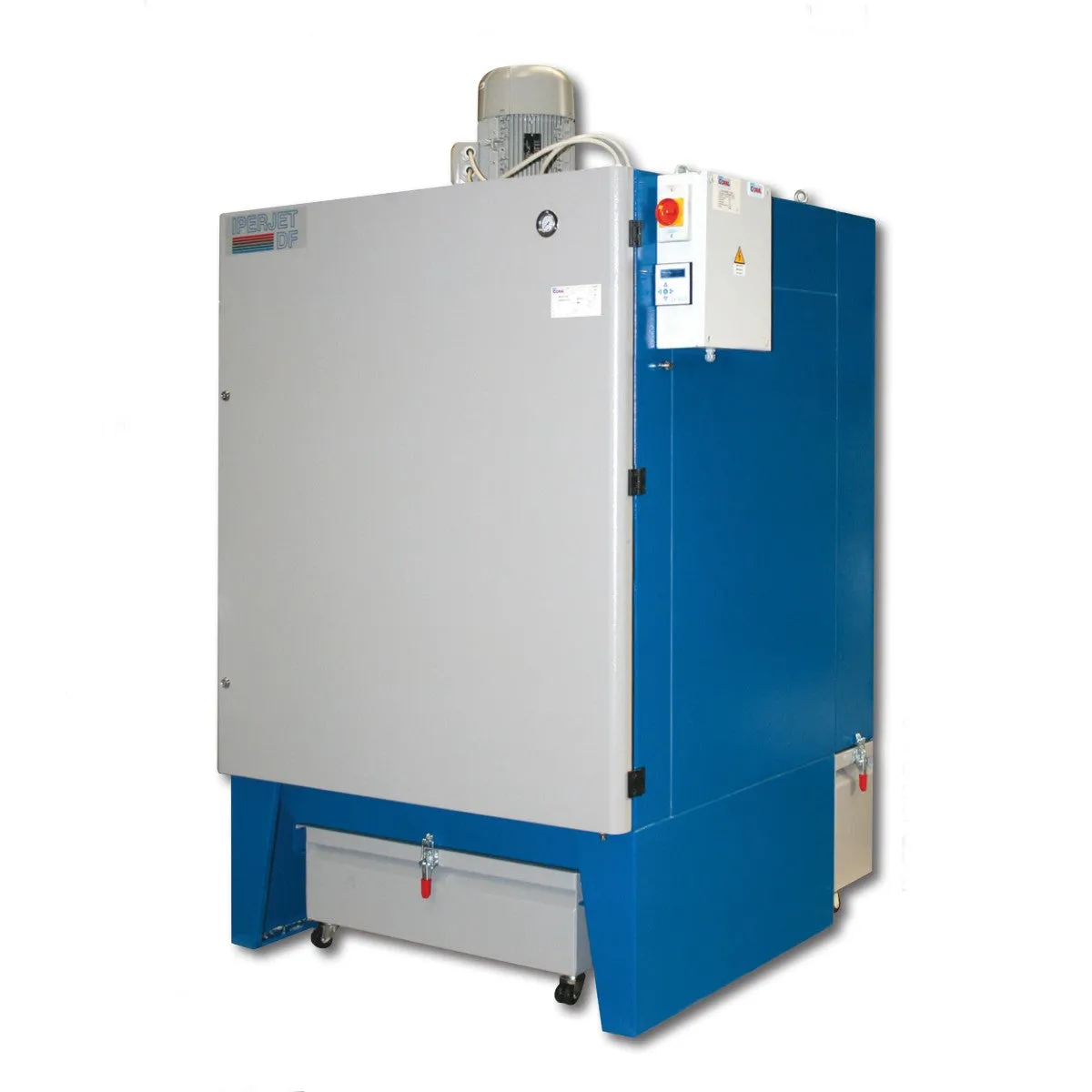

Coral IPERJET DF dust collection system

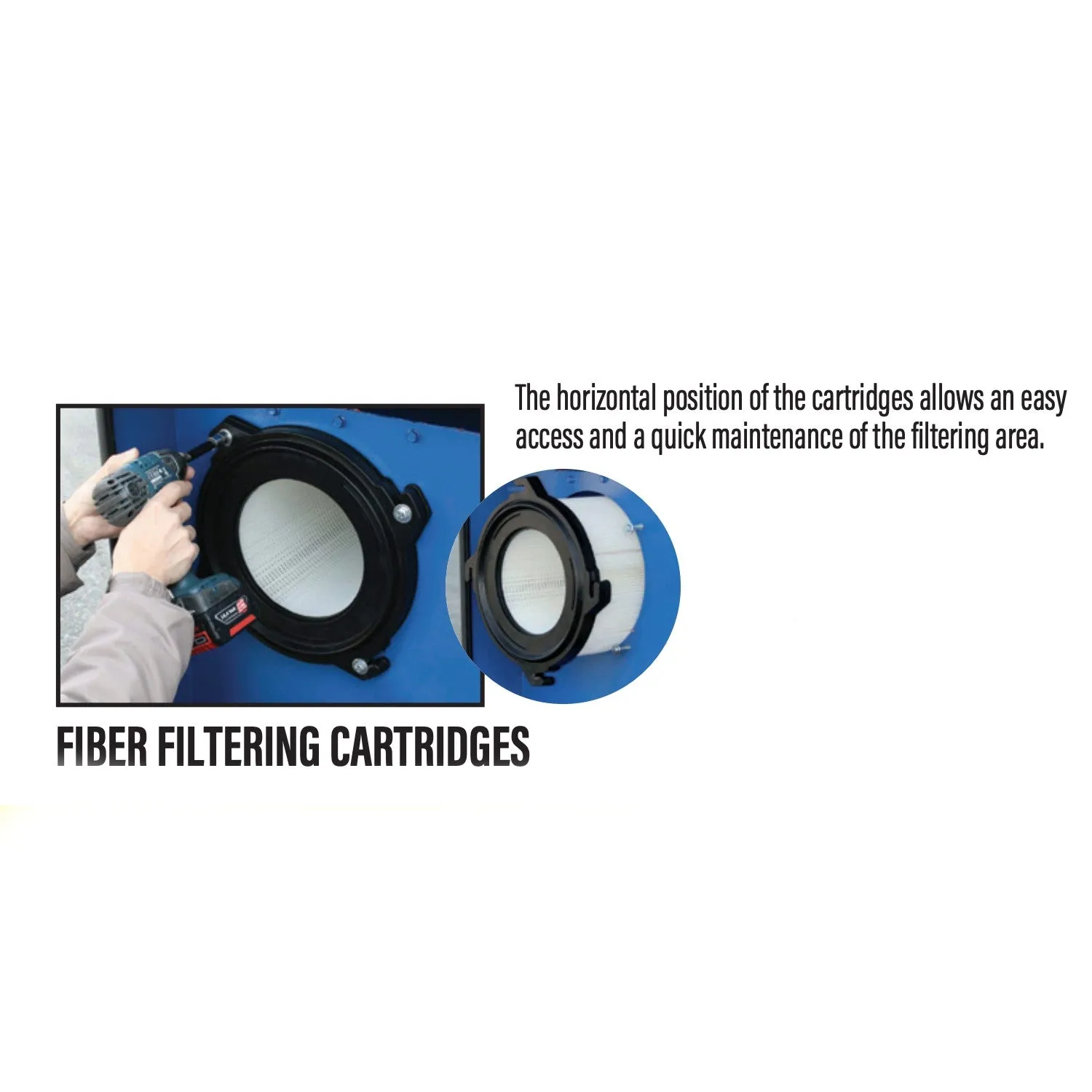

Experience the exceptional Coral IPERJET DF dust collection system, featuring a unique horizontally fixed filter cartridge design for simplified maintenance by your team. Versatile and ideal for applications demanding welding fume, dust, and chip removal, it excels in various scenarios. Rest easy knowing our motors hold certifications meeting UL and CSA standards, ensuring top-notch performance and safety.

Coral IPERJET DF dust collection specifications:

• DF4
• Power: 4 HP
• Supply Voltage: 3Ph [V] 220/440
• Frequency [Hz]: 60
• RPM: 3600 RPM
• Type of Fan: PRA250
• Air Flow: 1,770 CFM
• Static pressure [InchH2O]: 5.5
• Weight: 847 lbs

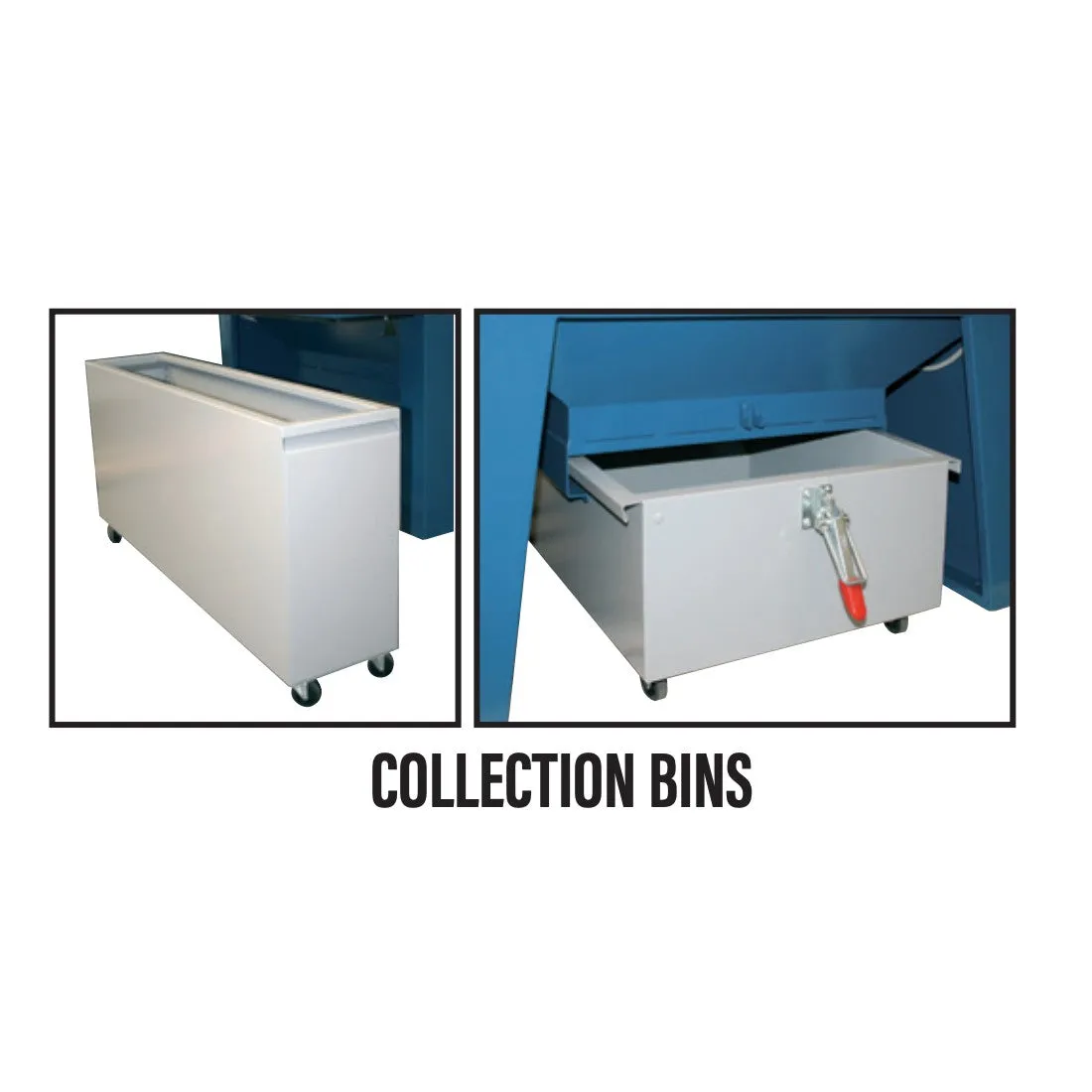

• Waste Dust Collection Bags Capacity: 21 22
• Working tank header pressure: 116 psi
• Electrical feeding of valve: 24 V
• Average Noise Level: 78 dBA

• DF6
• Power: 5.5 HP
• Supply Voltage: 3Ph [V] 220/440
• Frequency [Hz]: 60
• RPM: 3600 RPM
• Type of Fan: PRA280
• Air Flow: 2,360 CFM
• Static pressure [InchH2O]: 3.9
• Weight: 1034 lbs
• Waste Dust Collection Bags Capacity: 23 30
• Working tank header pressure: 116 psi
• Electrical feeding of valve: 24 V
• Average Noise Level: 81 dBA

• DF9
• Power: 10 HP
• Supply Voltage: 3Ph [V] 220/440
• Frequency [Hz]: 60
• RPM: 3600 RPM
• Type of Fan: PRA320
• Air Flow: 3,835 CFM
• Static pressure [InchH2O]: 5.5
• Weight: 1364 lbs
• Waste Dust Collection Bags Capacity: 27 36
• Working tank header pressure: 116 psi
• Electrical feeding of valve: 24 V
• Average Noise Level: 85 dBA

Applications include Deburring, Grinding, Polishing, Dry Dust, Welding, Sanding, Thermal Cutting

The IPERJET DF designed for applications that require the removal and filtration of welding fumes and dust.

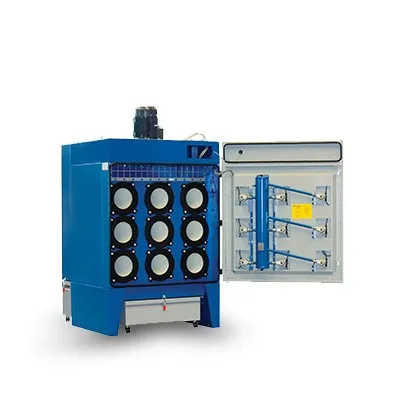

Welding Fume and dust collector with 4, 6 or 9 horizontal cartridges
