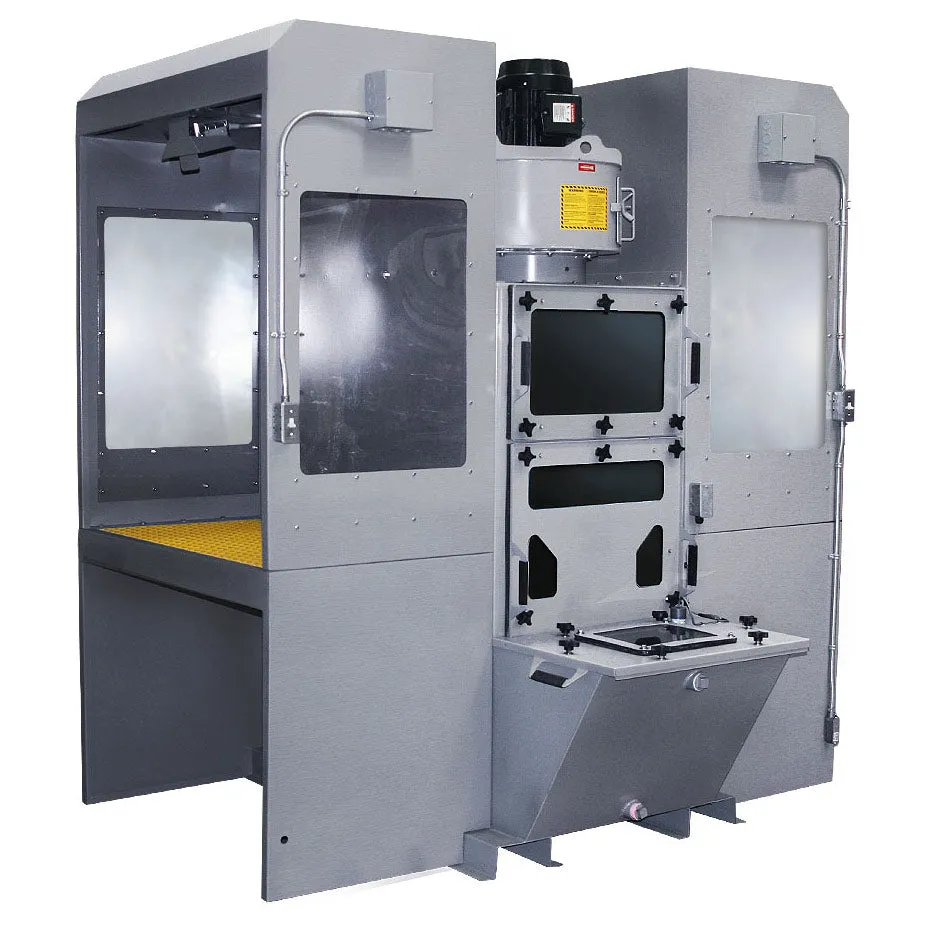

Wet Downdraft Table Details
| Model | CFM | Dim | HP |
| DFDWT3-1 | 2500 | 30" x 36" | 5 |
| DFDWT3-2 | 2500 | 2 - 30" x 36" | 5 |
| DFDWT4-1 | 4000 | 30" x 48" | 7.5 |
| DFDWT4-2 | 4000 | 2 - 30" x 48" | 7.5 |
| DFDWT6-1 | 6000 | 30" x 72" | 15 |
| DFDWT6-2 | 6000 | 2 - 30" x 72" | 15 |
DFDWT3-1 & DFDWT3-2: Top mounted Blower SXBD-01– 5HP/460V/3/60 Housing, Radial wheel, Matching paint, base support, and TEFC motor. 3000 cfm @ 6" H20
DFDWT4-1 & DFDWT4-2: Top mounted Blower SXBD-02– 7.5HP/460V/3/60 Housing, Radial wheel, Matching paint, base support, and TEFC motor. 4000 cfm @ 6" H20
DFDWT6-1 & DFDWT6-2: Top mounted Blower SXBD-04– 15HP/460V/3/60 Housing, Radial wheel, Matching paint, base support, and TEFC motor. 6000 cfm @ 6" H20
Materials: Complete wet dust collector constructed with 12 gauge steel with interior. One piece gasket on doors and front cap to ensure pressure within collector. Water basin with rear entry baffles and KIMRE pad impingers.
Panel: Magnetic motor starter, Thermal overload, Step down transformer, On/Off buttons, Full control panel including Nema 12 enclosure (Not included on DFDWT3-1)
Lighting: LED light kit. 1 kit for single and 2 kits for double.
Additional Details: High and Low water level alarms, Full water level controls, Outlet damper
Shipping charges: Calculated when purchased
Available in Stainless Steel
Additional options available upon request.
***LEAD TIME 8-12 WEEKS***
