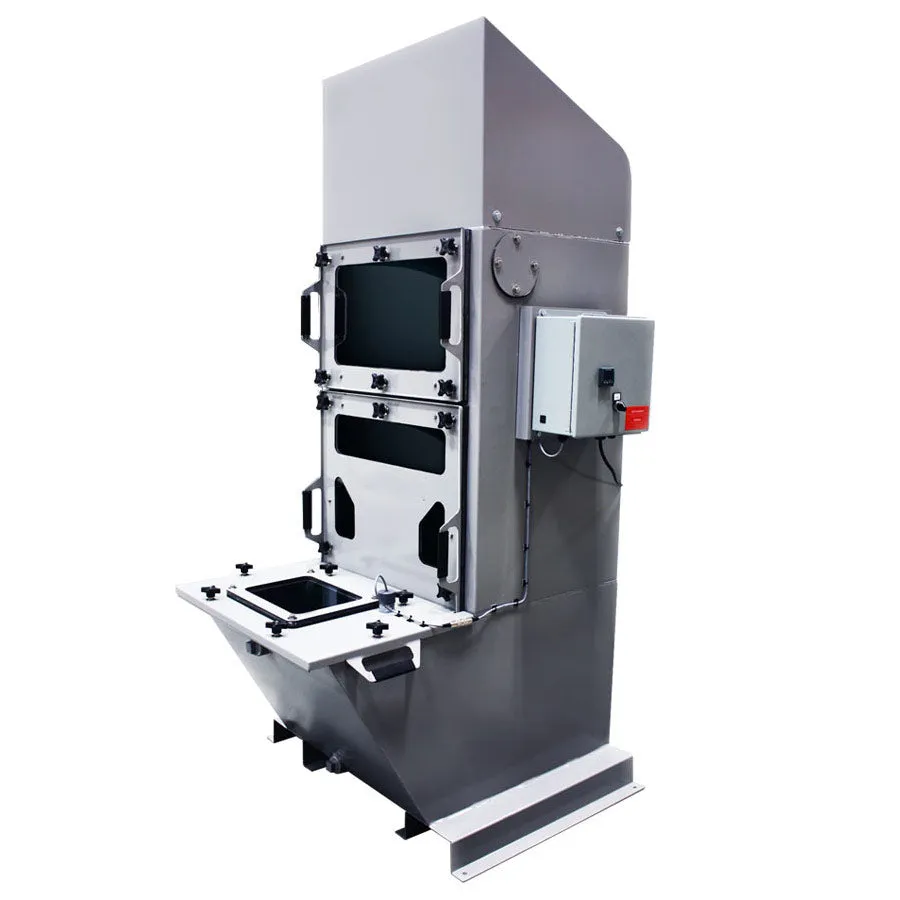

Wet Dust Collector Details

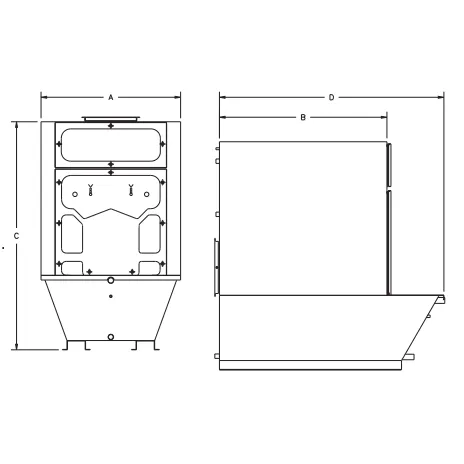

Model	CFM	Dim	HP
DFDWC1	1000	30 x 24 x 71 x 48	5
DFDWC2	2000	30 x 30 x 68 x 54	7.5
DFDWC4	4000	40 x 50 x 81 x 72	15
DFDWC6	6000	44 x 60 x 86 x 82	20
DFDWC8	8000	60 x 72 x 98 x 94	30
DFDWC10	10000	60 x 72 x 98 x 94	30

DFDWC1: Top mounted Blower SXBD– 5HP/460V/3/60 12.5" BI wheel – 3450 Rpm 1000 cfm @ 8" H20

DFDWC2: Top mounted Blower SXBD– 7.5HP/460V/3/60 13" BI wheel – 3450 Rpm 2000 cfm @ 10" H20

DFDWC4: Top mounted Blower SXBD– 15HP/460V/3/60 15" BI wheel – 3450 Rpm 4000 cfm @ 10" H20

DFDWC6: Top mounted Blower SXBD– 20HP/460V/3/60 16.5" BI wheel – 3450 Rpm 6000 cfm @ 10" H20

DFDWC8: Top mounted Blower SXBD– 30HP/460V/3/60 27" BI wheel – 1750 Rpm 8000 cfm @ 10" H20

DFDWC10: Top mounted Blower SXBD– 30HP/460V/3/60 27" BI wheel – 1750 Rpm 10000 cfm @ 10" H20

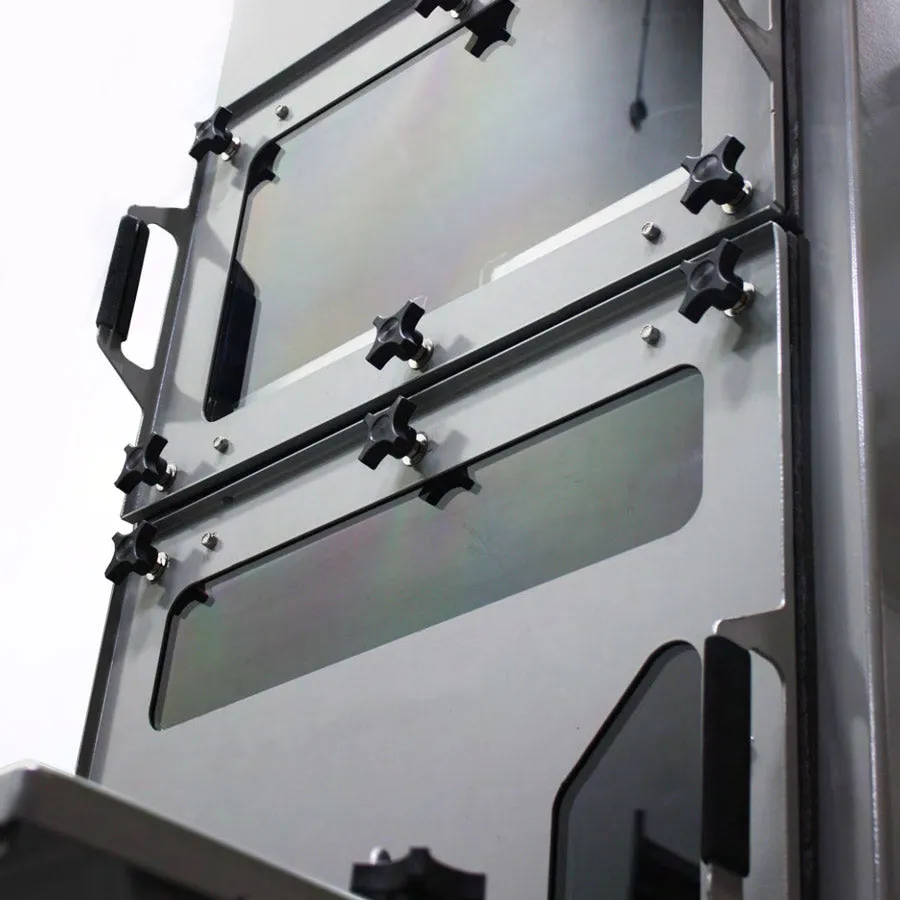

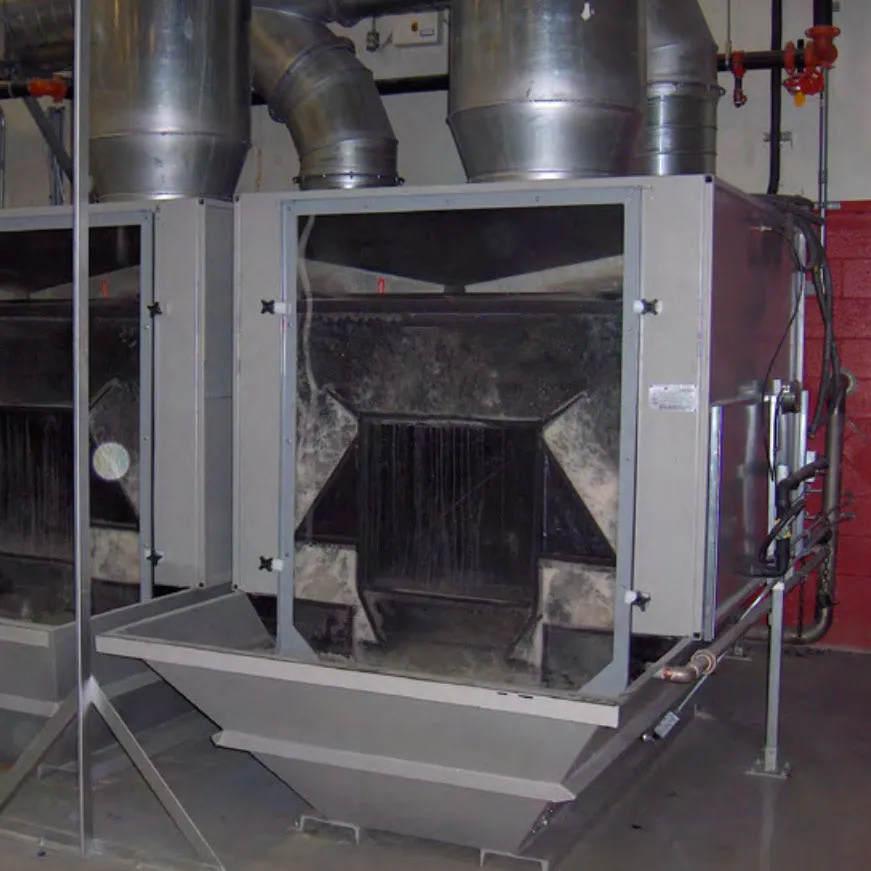

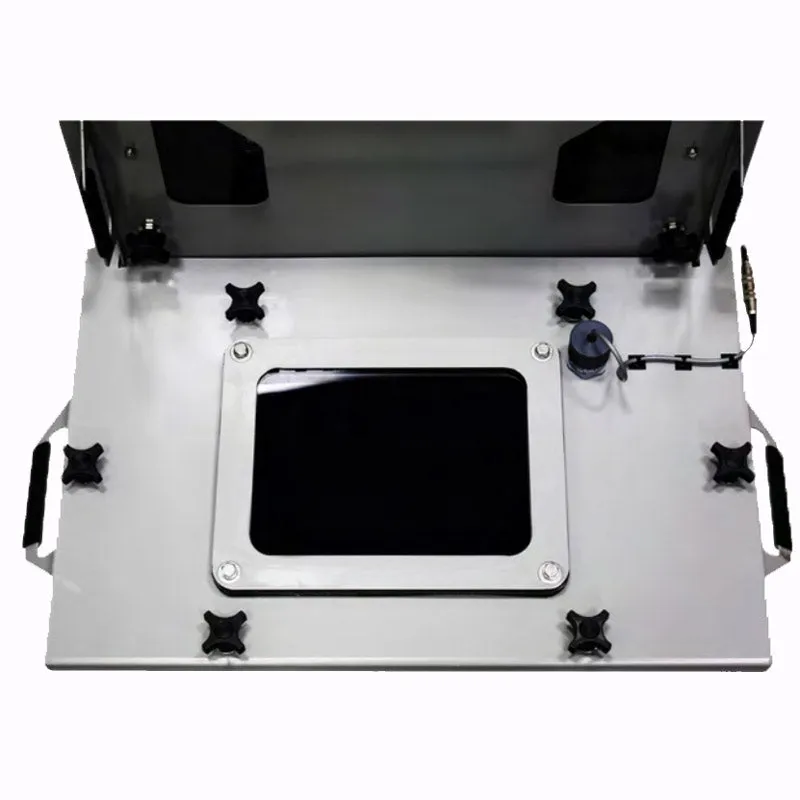

Materials: Complete wet dust collector constructed with 12 gauge steel with interior. One piece gasket on doors and front cap to ensure pressure within collector. Water basin with rear entry baffles and KIMRE pad impingers.
Panel: Magnetic motor starter, Thermal overload, Step down transformer, On/Off buttons, Full control panel including Nema 12 enclosure
Lighting: LED light kit.
Additional Details: High and Low water level alarms, Full water level controls, Outlet damper
Shipping charges: Calculated when purchased
Available in Stainless Steel
Additional options available upon request.

***DUCTING INFORMATION REQUIRED TO QUOTE***
