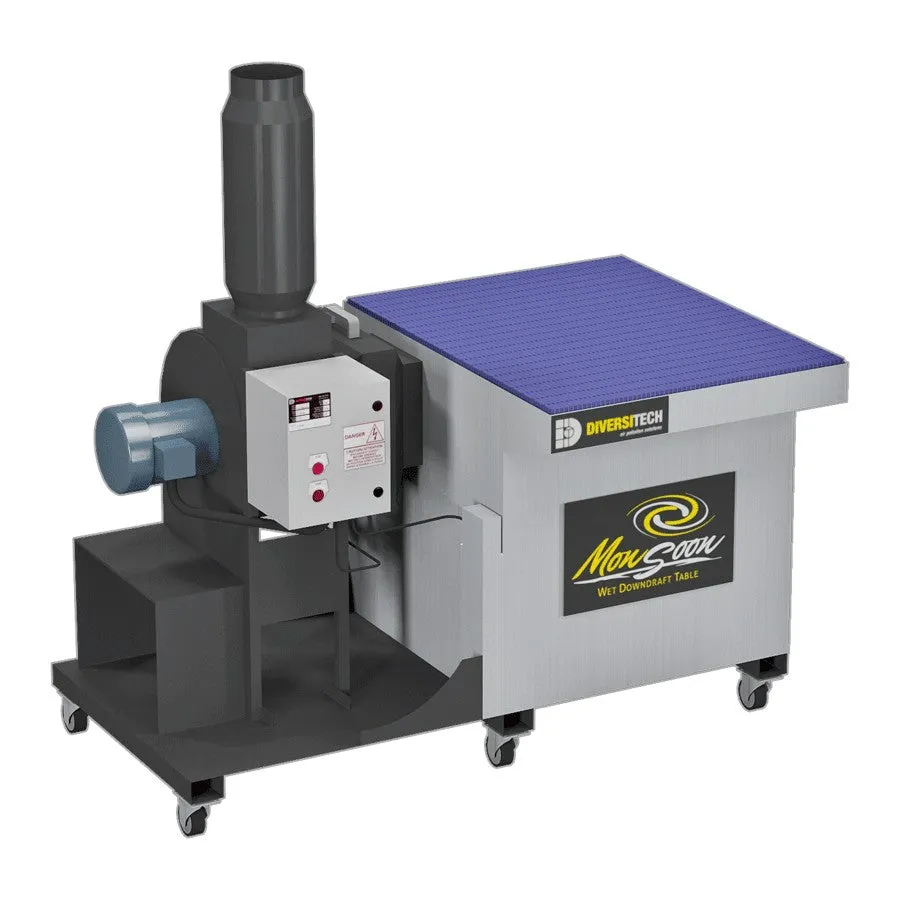

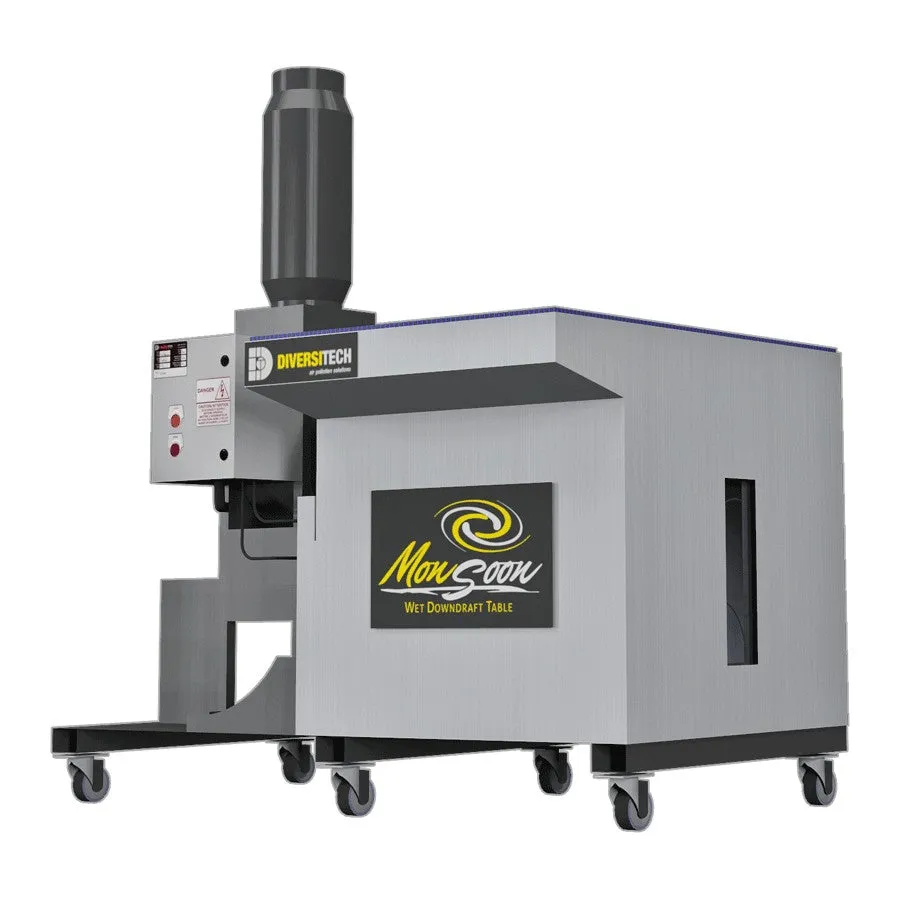

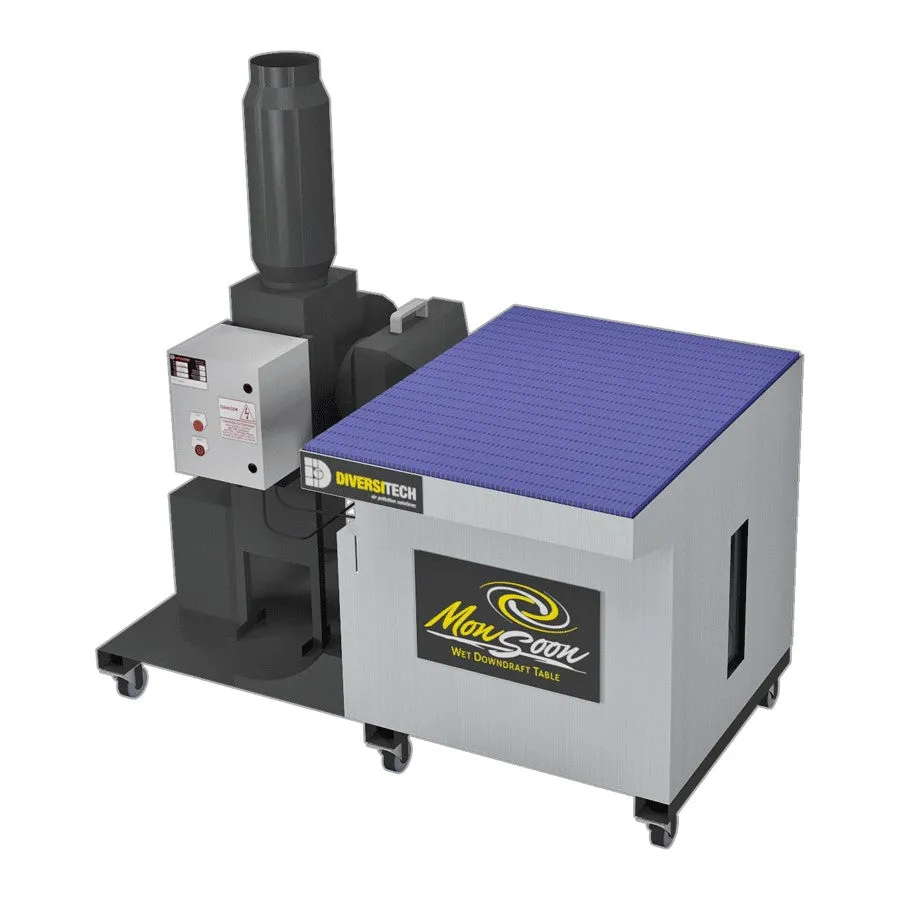

MONSOON MINI WET DOWNDRAFT TABLE DETAILS

• Flexible 38” x 36” Worksurface
• Low Water Auto-shutdown
• Stainless Steel Construction
• 3.0HP TEFC Motor producing 1200 CFM of airflow
• Heavy-duty Steel Bar Grating with Protective Mat
• Mist Eliminator After-filter, 99% @ 3 microns
• NEMA 12 Control Panel with Overload Protection
• Water Fill System: Auto
• Nominal Air Flow (CFM): 1200
• Avg. Face Velocity (FPM): 300
• Motor H.P.: 3.0
• Phase (hz): three-phase
• F.L.A. @ 230V/460V/575V: 9.6 / 4.8 / 3.9
• Worksurface (in.): 38″W x 36″L
• Footprint (in.): 60″W x 39″H x 42″L
• Weight (lbs.): TBD
• Sound Level (dB): 72 @ 5′

The MONSOON series all include industrial swivel casters, This table is approved for capturing combustible dust, including mixtures of steel, aluminum, titanium, and magnesium.

Optional Upgrades:

• Auto Wash-down System
• WV-55 Sludge-Vac
• Side and Back Walls
• HEPA Afterfilter Kit (99.99% @ 0.3 micron)
• Dust-Tight / Vapor-Tight Light Kit
• Auto-fill Water Control System (MDD-MINI)
• Custom configurations available on request
