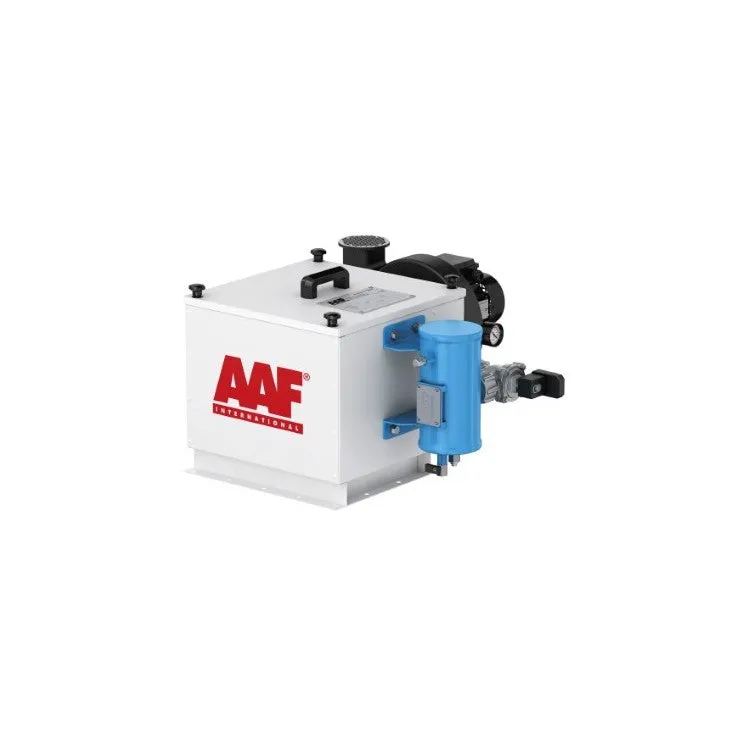

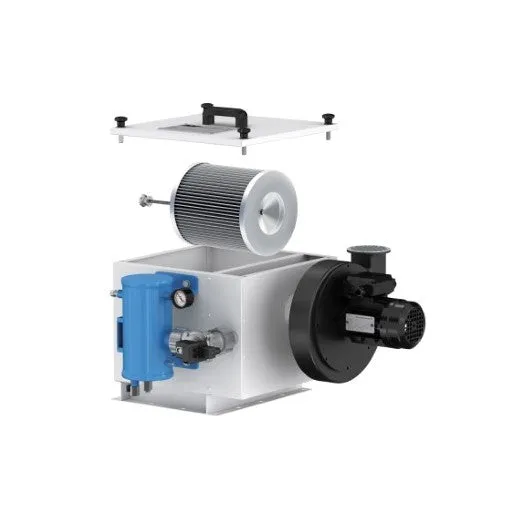

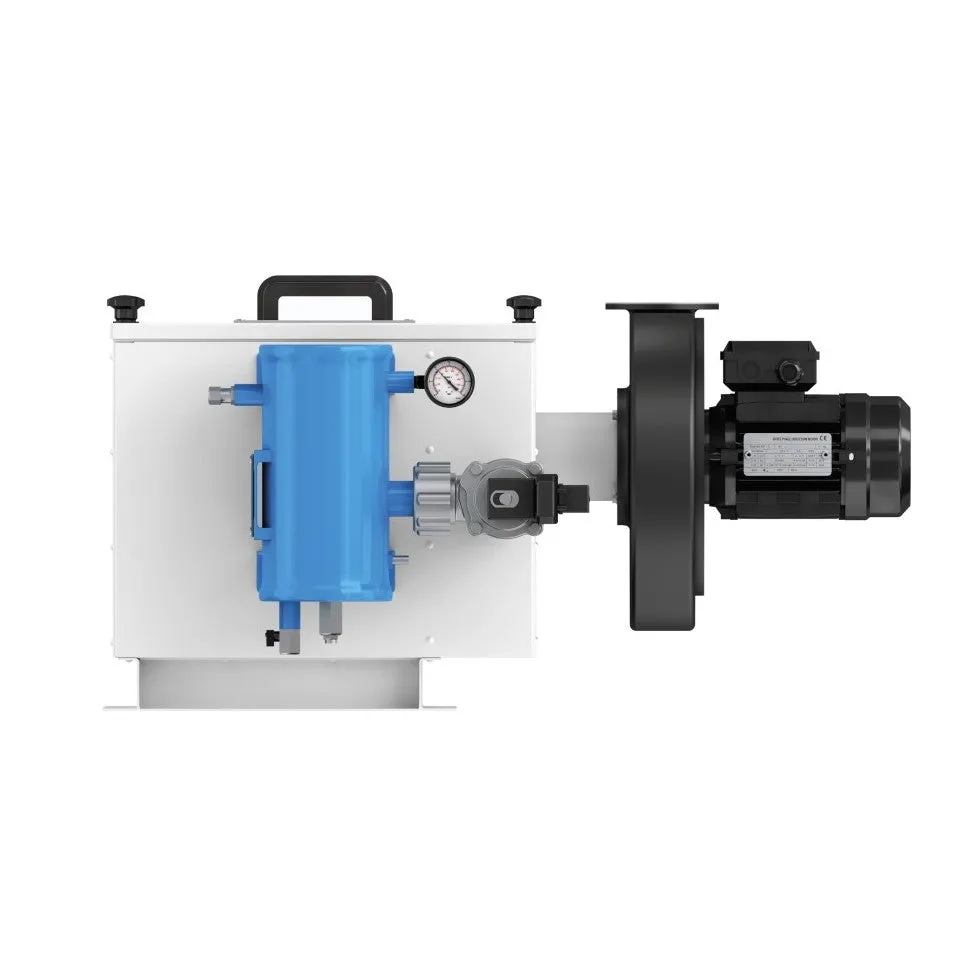

OptiFlo MiniPulse Details:

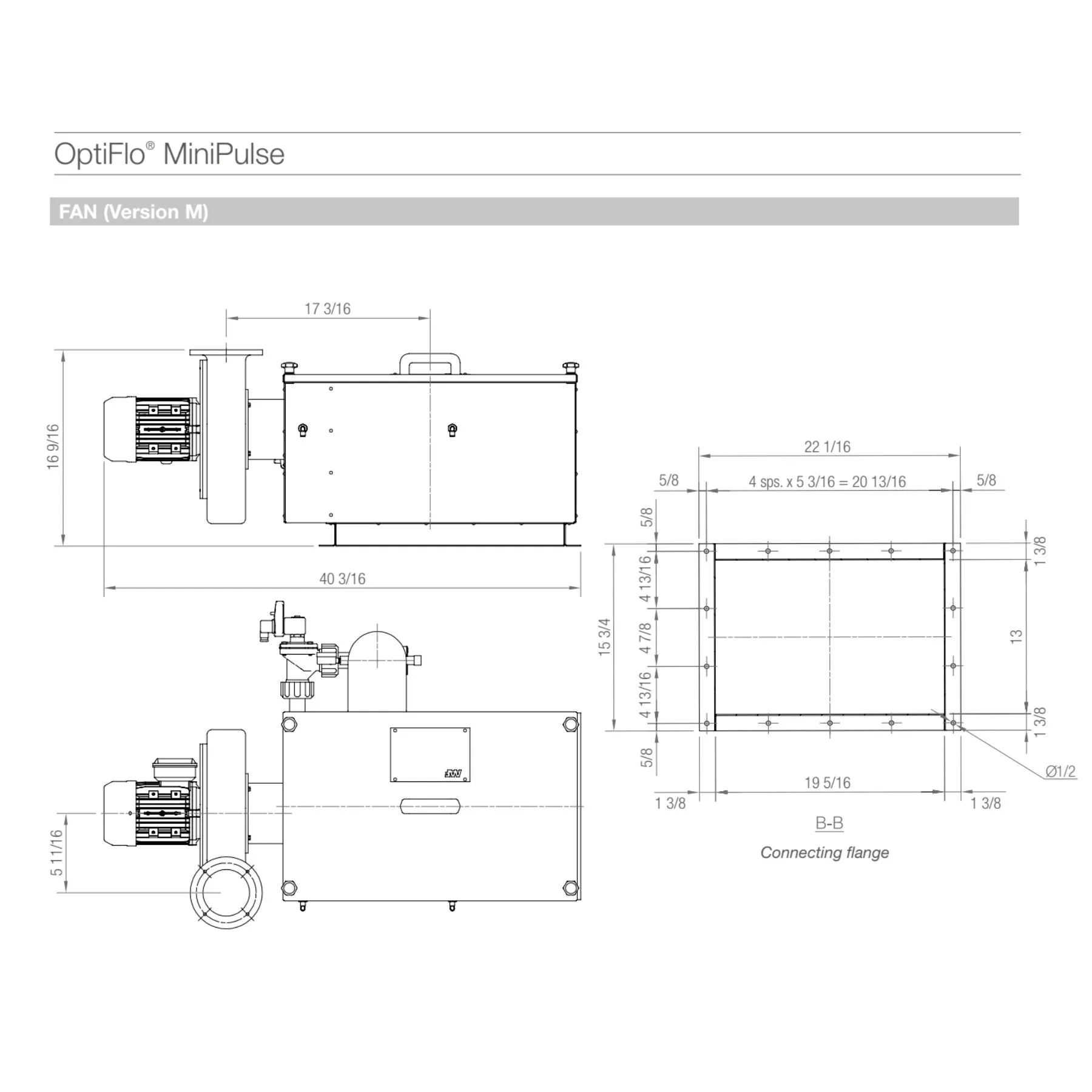

• Model: Fan (Version M shown) or Venting (Version V)
• Speed: 2710 rpm
• Intensity: 2.94-1.70 A / 230 V-400 V
• Power: 3/4 HP

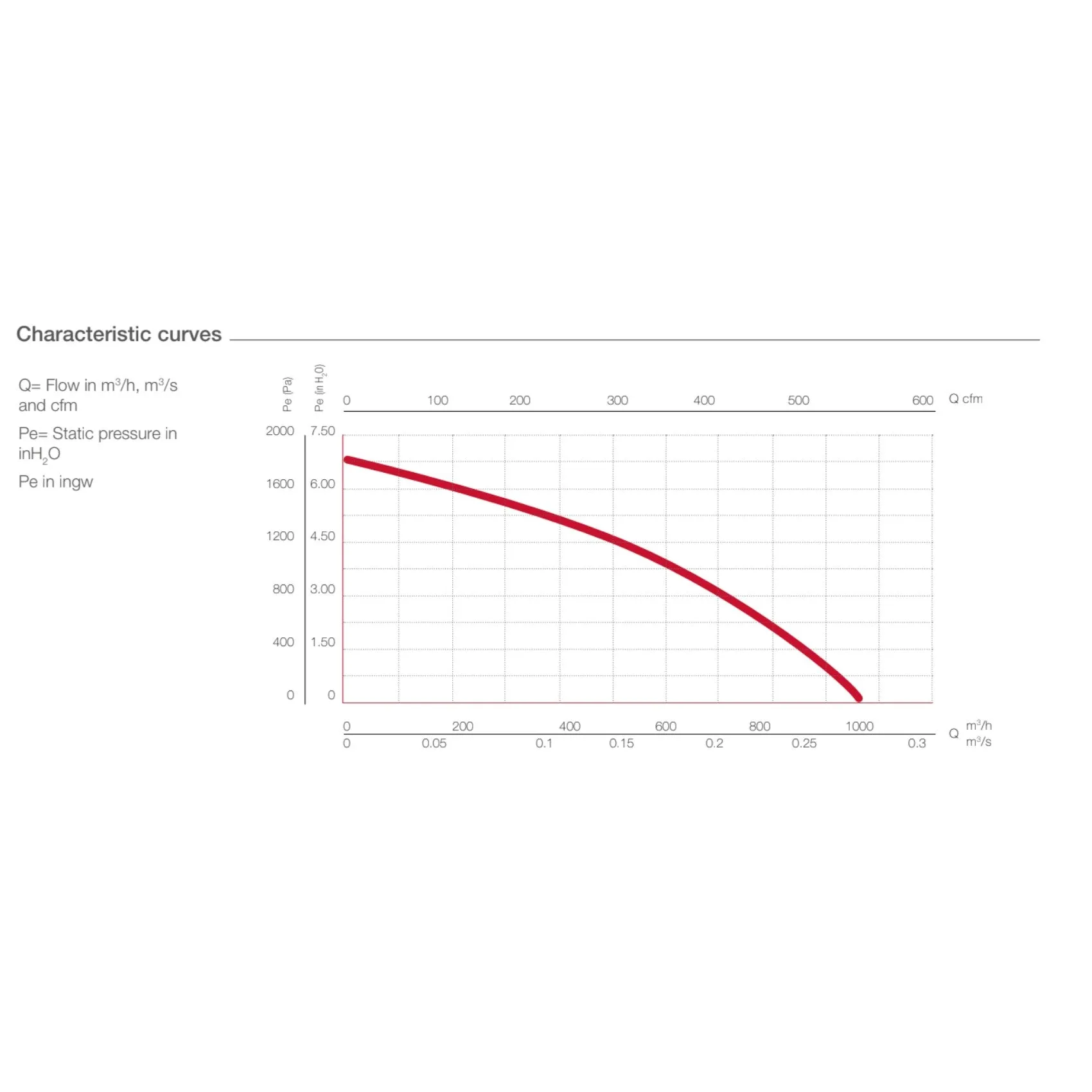

• Flow: 600 CFM
• Sound pressure level: 80 dB(A)
• Max Pressure: Blown Air 60 PSI
• Air Consumption: 1.0 CFM (during cleaning)
• Weight: 103.635 lb
• Operating Temperature: Temperature: <149 F
• Operating Pressure: /- 12.0 w.g.
• Efficiency: MERV 15 as per ASHRAE 52.2

OptioFlo MiniPulse Applications:

• Elevators
• Conveyors

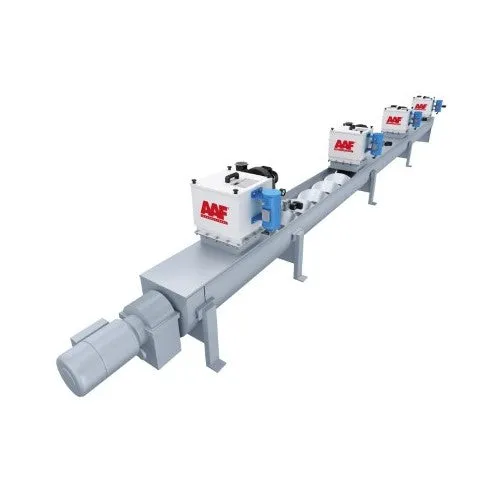

• Screw conveyor

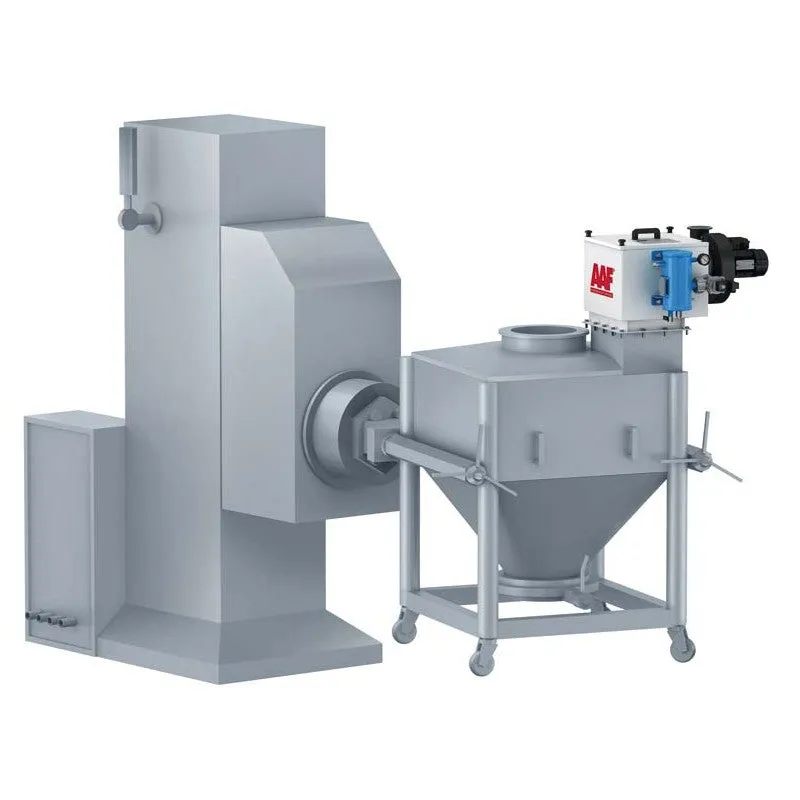

• Big-Bag

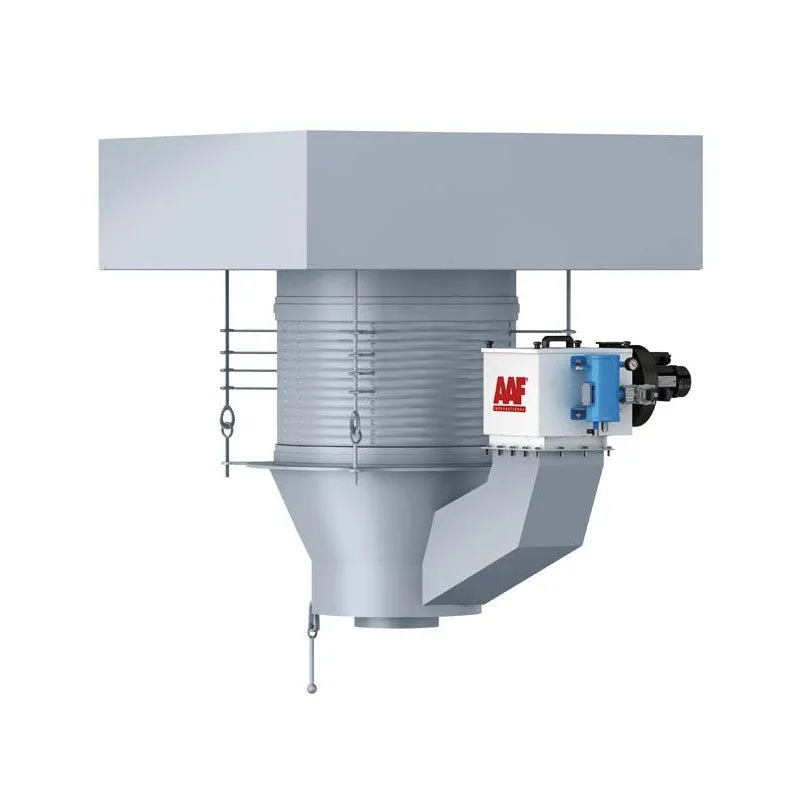

• Silo
• Telescopic bag

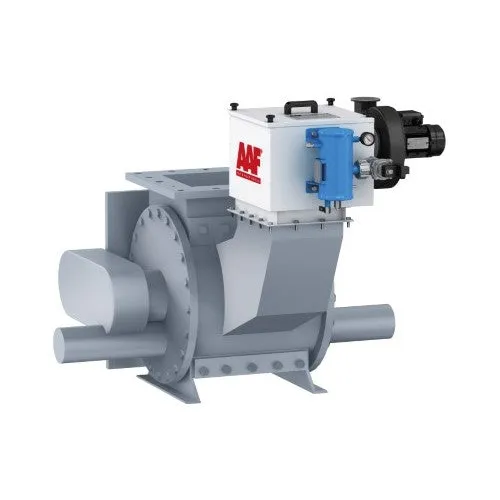

• Rotating valve
• Feeder
• Mixer
• Hopper
• Feed Systems
• Pharmaceutical
• Chemical
• Metallurgy

DAMN Filters offers a full line of .

If you don't see the dust collector you are looking for or need help give us a call at or .
